Type-C Charging for 30 Mobile Devices
TU130VS
- 30 USB-C® ports

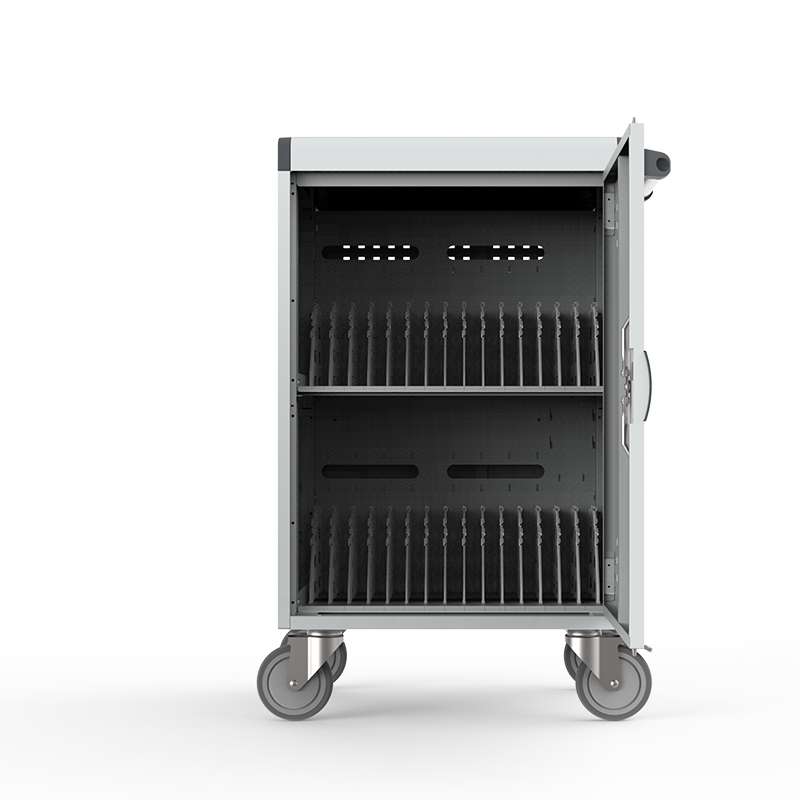

- 30 storage compartments for Chromebooks, laptops, iPads, and tablets up to 15.6 inches
- Automatic power delivery adjustment: 20V/15V/12V/9V/5V
- Dynamic power allocation, Up to 65W or 45W per port, depending on the number of active ports.
- 0–7 devices: Up to 65W per port
- 8–10 devices: Up to 45W per port
- Supports PD 3.0 / PD 2.0 / BC 1.2, compatible with legacy BC 1.2 and Apple Lightning tablet charging
- Built-in active cooling fan
- Individual LED indicators for charging status
- Reserved external full-color LED display
- Compatible with both low-power tablets and high-power notebooks
- MCU firmware upgradable via USB
 |
 |
SPECIFICATIONS
|
Capacity |
30 |
|---|---|
|
Charging Type |
Type-C Charging |
|
Compatibility |
≦15.6" Screen Device |
|
Slot Dimension (WxDxH) |
392x25x326mm |
|
Cart Dimension (WxDxH) |
634.7x588.4x940mm |
|
Cable Management |
Yes |
|
Net Weight |
43.9Kg |
|---|---|
|
Lock Type |
Padlock |
|
Power On/Off Switch |
Yes |
|
Charge |
Yes |
|
Charging Profile |
Support 20V,15V,12V,9V,5V Max. O/P 45W/65W for each port. • 0-7 devices: 65W per port • 8-10 devices: 45W per port Support PD3.0/PD2.0/BC1.2 Alternate charging based on power budget |
