Charging Cabinet For Tablets/Device Charging Cabinet

DT310PS

DT310PS ideally works to secure, protect, and charge up to 10 tablets, accommodating almost any tablet up to a 10.1-inch screen size. The data synchronize function creates, deletes, moves, and modifies easily and quickly, and the charging is compatible with almost any tablet even if it is mixed in both IOS & Android. The USB charging provides 5V/2.4A power from each USB port. Multiple tablets charging designs will become more popular for deployment in education, enterprise, governments, or retail stores. The way and demand for store/secure/charging/centralized managing devices will come bigger than ever. Also, we provide optional functions, such as 2-inch wheels, wall-mount brackets, or stackable design( for 2 or more cabinets) and it can be selected freely by your demand.

laptop tablet





SPECIFICATIONS



1 copy

Charging Cabinet For Tablets- DT310PS



As the trend of interactive teaching booming, teachers are now more and more used to teaching with mobile devices such as laptops, Apple iPad, Android tablets, Surface tablets, and even Chromebook. Students can easily upload and check homework online on those devices. However, how to store and charge those precious devices becomes a major issue for all teachers. This USB charging cabinet for tablets (DT310PS) is the best solution for all teachers. It is ideally working for transporting, securing, protecting, and charging up to 10 tablets; accommodates almost any tablet (both iOS and Android) up to 10.1-inch screen size. Moreover, this tablet device charging cabinet contains a data sync function, which is able to easily create, delete, move and modify data through the sync function. Other than its use in education, it is also suitable for enterprises, government, or retail.

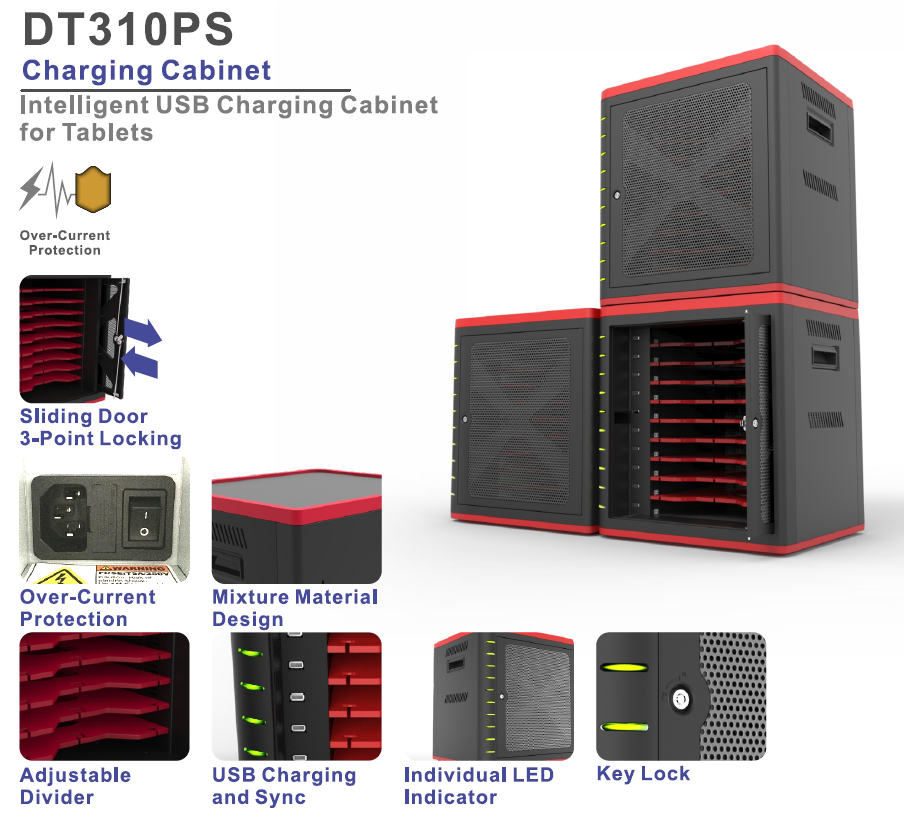

Features

- Compact design

- Stackable

- Steel and plastic are combined to create a strong but lightweight design

- Sliding door design for space-saving concern

- 3-point steel lock mechanism

- Data synchronization through USB

- Individual LED indicator for charging and sync status

- Provide full 2.4A charging current per USB port

- Support US/EU/UK/AU power cord

- Over current protection

- Adjustable dividers

- Design with handles on both sides

- Cable management

2





3

Optional add-ons

- 3-inch caster set for easy movement

- Wall mount kit (available to save space by mounting the USB charging cabinet on the wall)







WHY Smart Charging Technology?

The Smart Charging Technology mainly makes your power charging more efficient, and shorten and optimize the charging time of your devices. This technology detects the physical power output status and switches to the cycle charging automatically when power overloads, so it can provide the best charging solution to protect your devices all the time. Through the Smart Charging Technology, it can keep detecting and identifying the power status, absolutely implementing to maximize charging efficiency and save your charging time.



During the process of automatic charging control, inrush current is filtered out, and when the total current required by at least two channels is higher than the maximal current supply value, at least two channels take turns charging for the first charging period. If one of the channels is satisfying the condition and remaining channels can take turns charging until the devices are fully charged. Therefore, this smart charging method can filter out inrush current and effectively increase charging efficiency. The major principle of the concept is to select the large current channel to supply power among two or three channels depending on different models. Every 15 minutes, the control board can detect automatically to re-allocate power to the most needed channel to charge plugged devices to an average capacity which means every device can be charged to a similar level to avoid an uneven situation, for example, some devices are 100% charged and some are only 50% charged. So this technology is smart to know WHEN to reallocate power to different channels or charge all devices at the same time according to the surrounding environment and your equipment.

7





8 copy

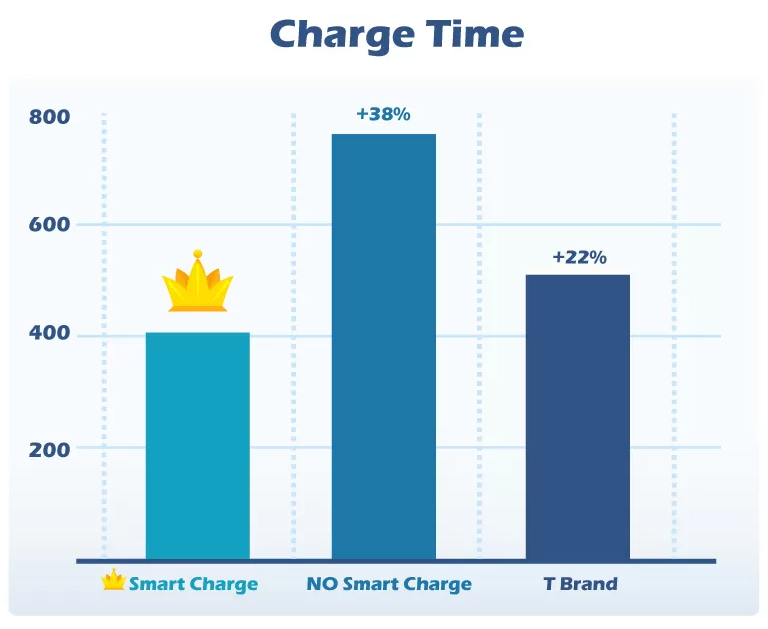

Charging Time Comparison

To compare the efficiency of the actual charging carts on the market, the Chen-Source charging cart series, Smart Charging carts can charge plugged devices 38% faster than NON-smart charging carts from 3% to 100% in the lab environment. Plus, compared with other similar smart charging systems on the market, the charging speed of Chen-Source Smart Charging Technology is 22% faster than other competitors generally. This test can prove that Chen-Source's Smart Charging Technology performance is a brilliant method to manage your charged devices.







Patent Certifications

We have successfully gained the U.S. and Taiwan patents for Smart Charging Technology in both AC and DC charging areas. Please feel free to ask us if you want to know more information!

6









Capacity

10 Bays

Charging Type

USB Charging and Sync

Compatibility

Tablet ≦10.1" Screen Device

Compartment Dimension (H)1 x (W)9.5 x (D)11 inch
Cabinet Dimension (H)16.9 x (W)15.8 x (D)13.8 inch
Packing Dimension (H)22 x (W)20.7 x (D)18.5 inch
Weight N.W: 15KG / G.W: 17.4KG
Container Loading 20": 144pcs / 40": 288pcs (with pallet)
 Lock Type 3-Point steel mechanism lock with key

 LED Indicator

Yes

 Charge/Sync Yes / Yes

Cable Management

Yes

Regulation/Certification

North America: FCC Part 15/IEC-003, UL60950-1/cULus: CSA

Europe: CE-EMC, LVD EN60950-1, TUV-GS

Australia/N.Z.: RCM

Power Specification

AC 100-120V (12A) / AC220-240V (10A), 50/60Hz

DC 5V2.4A (each USB port)
